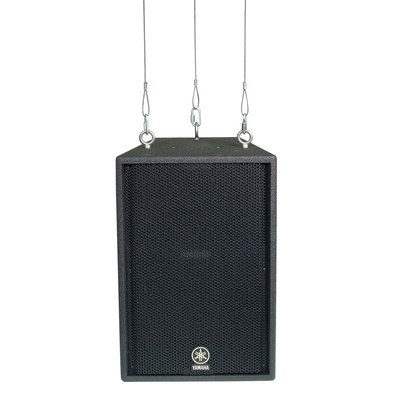

FLYABLE MODELS:Ideal for installations

暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。

  • C112V的懸掛版本

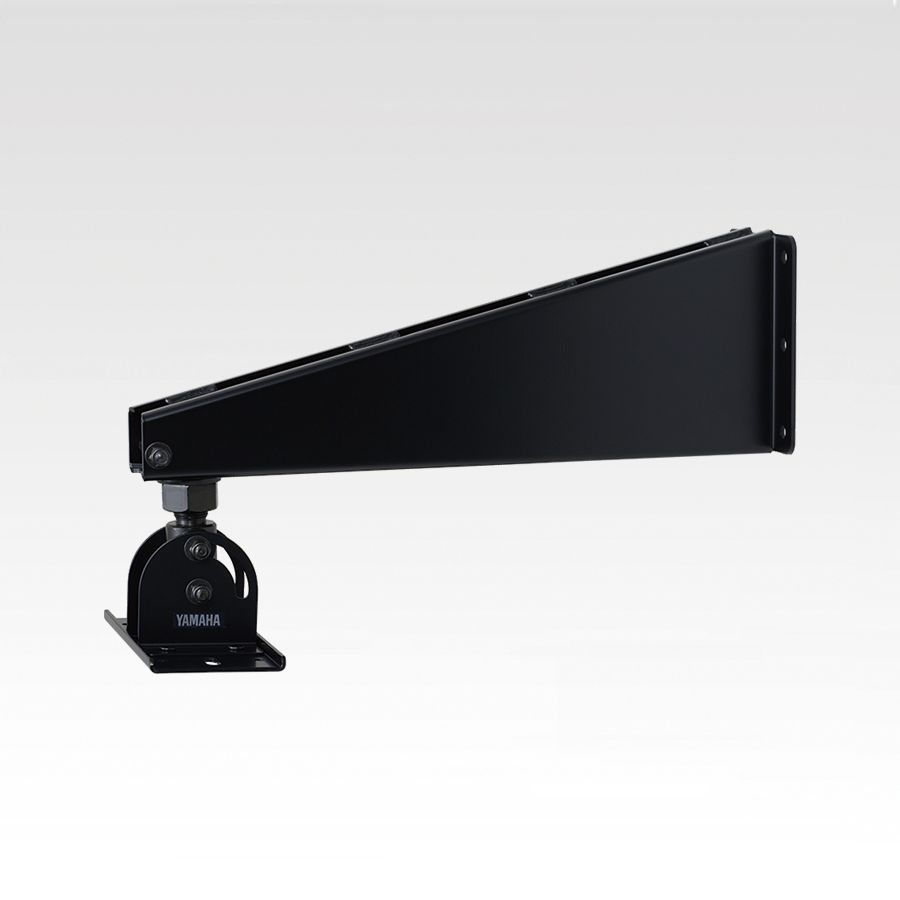

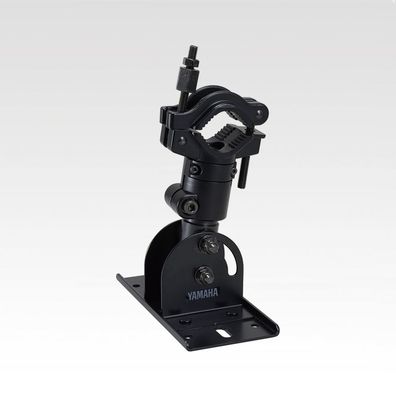

  • 各種安裝支架可供選擇
  • 12個吊裝點
  • 便于布線的接線條
  • 附帶3/8"吊環(huán)螺栓


FLYABLE MODELS:Ideal for installations

暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。

  • C115V的懸掛版本
  • 12個吊裝點
  • 便于布線的接線條
  • 附帶3/8"吊環(huán)螺栓


  • 凈重：2.3kg; 5.1lbs
  • 承重：30kg; 66.2lbs
  • 適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I


  • 凈重: 4.4kg; 9.7lbs
  • 承重: 30kg; 66.2lbs
  • 適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I


  • 凈重: 5.2kg; 11.5lbs
  • 承重: 30kg; 66.2lbs
  • 適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I

  • 凈重: 2.3kg; 5.1lbs
  • 承重: 30kg; 66.2lbs
  • 適用音箱型號: IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10,
  • C112VA, HS8I, HS7I


S SERIES

Road-worthy, rugged carpet covered models

  S112V S115V S215V SM10V SM12V SM15V SW115V SW118V SW218V
音箱類型 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 15" subwoofer 18" subwoofer Dual 18" subwoofer
頻率響應 (-10dB) 60Hz-16kHz 55Hz-16kHz 42Hz-16kHz 70Hz-20kHz 60Hz-16kHz 55Hz-16kHz 35Hz-2kHz 30Hz-2kHz 30Hz-2kHz
標稱覆蓋范圍 H 90 90 90 40 40 40 - - -
V 40 40 40 60 90 90 - - -
部件 LF 12" cone 15" cone 2x 15" cone 10" cone 12" cone 15" cone 15" cone 18" cone 2x 18" cone
HF Horn, 2" voice coil driver Horn, 2" voice coil driver Horn, 2" voice coil driver Horn, 1" voice coil driver Horn, 2" voice coil driver Horn, 2" voice coil driver - - -
電功率 噪聲 175W (EIA) 250W (EIA) 500W (EIA) 125W (EIA) 175W (EIA) 250W (EIA) 250W (EIA) 300W (EIA) 600W (EIA)
PGM 350W 500W 1000W 250W 350W 500W 500W 600W 1200W
PEAK 700W 1000W 2000W 500W 700W 1000W 1000W 1200W 2400W
額定阻抗 8ohms 8ohms 4ohms 8ohms 8ohms 8ohms 4ohms 4ohms 4ohms
SPL 靈敏度( 1W, 1m軸向) 97dB SPL 99dB SPL 99dB SPL 96dB SPL 97dB SPL 99dB SPL 95dB SPL 96dB SPL 98dB SPL
連續(xù) (計算得出) 119dB SPL 123dB SPL 126dB SPL 117dB SPL 119dB SPL 123dB SPL 119dB SPL 121dB SPL 126dB SPL
峰值 (計算得出) 125dB SPL 129dB SPL 132dB SPL 123dB SPL 125dB SPL 129dB SPL 125dB SPL 127dB SPL 132dB SPL
I/O 接口 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON
外形 30 degrees trapezoidal 30 degrees trapezoidal 25 degrees trapezoidal Wedge Wedge Wedge Rectangular Rectangular Rectangular
涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝
把手 2 2 2 1 1 1 2 2 2
音箱架立柱插孔 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) - 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) -
外觀尺寸 W 420mm; 16-1/2in 489mm; 19-1/4in 495mm; 19-1/2in 560mm; 22in 632mm; 24-7/8in 719mm; 28-1/4in 506mm; 19-7/8in 610mm; 24in 1221mm; 48-1/8in
H 632mm; 24-7/8in 719mm; 28-1/4in 1167mm; 46in 353mm; 13-7/8in 414mm; 16-1/4in 483mm; 19in 611mm; 24in 728mm; 28-5/8in 578mm; 22-3/4in
D 333mm13-1/8in 377mm; 14-7/8in 597mm; 23-1/2in 277mm; 10-7/8in 351mm; 13-7/8in 343mm; 13-1/2in 532mm; 21in 641mm; 25-1/4in 659mm; 26in
凈重 20.8kg; 45.9in 29.4kg; 64.8lbs 47.2kg; 104.1lbs 13.4kg; 29.5lbs 21.4kg; 47.2lbs 28kg; 61.7lbs 28.2kg; 62.2lbs 39kg; 86lbs 65.4kg; 144.2lbs

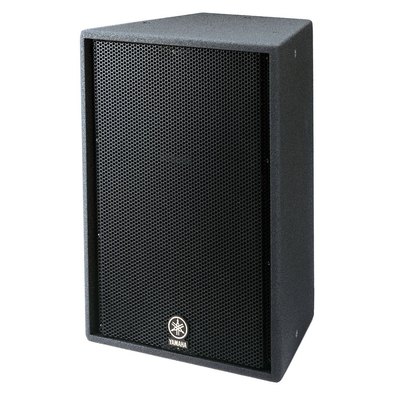

C SERIES

Durable spray-finished models with foamed steel grilles

  C112V C115V C215V CM10V CM12V CM15V CW115V CW118V CW218V
音箱類型 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 2-way full-range speaker 15" subwoofer 18" subwoofer Dual 18" subwoofer
頻率響應 (-10dB) 60Hz-16kHz 55Hz-16kHz 42Hz-16kHz 70Hz-20kHz 60Hz-16kHz 55Hz-16kHz 35Hz-2kHz 30Hz-2kHz 30Hz-2kHz
標稱覆蓋范圍 H 90 90 90 40 40 40 - - -
V 40 40 40 60 90 90 - - -
部件 LF 12" cone 15" cone 2x 15" cone 10" cone 12" cone 15" cone 15" cone 18" cone 2x 18" cone
HF Horn, 2" voice coil driver Horn, 2" voice coil driver Horn, 2" voice coil driver Horn, 1" voice coil driver Horn, 2" voice coil driver Horn, 2" voice coil driver - - -
電功率 噪聲 175W (EIA) 250W (EIA) 500W (EIA) 125W (EIA) 175W (EIA) 250W (EIA) 250W (EIA) 300W (EIA) 600W (EIA)
PGM 350W 500W 1000W 250W 350W 500W 500W 600W 1200W
PEAK 700W 1000W 2000W 500W 700W 1000W 1000W 1200W 2400W
額定阻抗 8ohms 8ohms 4ohms 8ohms 8ohms 8ohms 4ohms 4ohms 4ohms
SPL 靈敏度( 1W, 1m軸向) 97dB SPL 99dB SPL 99dB SPL 96dB SPL 97dB SPL 99dB SPL 95dB SPL 96dB SPL 98dB SPL
連續(xù) (計算得出) 119dB SPL 123dB SPL 126dB SPL 117dB SPL 119dB SPL 123dB SPL 119dB SPL 121dB SPL 126dB SPL
峰值 (計算得出) 125dB SPL 129dB SPL 132dB SPL 123dB SPL 125dB SPL 129dB SPL 125dB SPL 127dB SPL 132dB SPL
I/O 接口 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON 2x Phone, 2x speakON
外形 30 degrees trapezoidal 30 degrees trapezoidal 25 degrees trapezoidal Wedge Wedge Wedge Rectangular Rectangular Rectangular
涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝 噴涂涂裝
把手 2 2 2 1 1 1 2 2 2
音箱架立柱插孔 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) - 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) 1x 35mm (1-3/8in) -
外觀尺寸 W 416mm; 16-3/8in 485mm; 19-1/8in 491mm; 19-3/8in 556mm; 21-7/8in 628mm; 24-3/4in 715mm; 28-1/8in 500mm; 19-5/8in 605mm; 23-7/8in 1217mm; 47-7/8in
H 628mm; 24-3/4in 715mm; 28-1/8in 1163mm; 45-3/4in 349mm; 13-3/4in 410mm; 16-1/8in 339mm; 13-3/8in 607mm; 23-7/8in 720mm; 28-3/8in 574mm; 22-5/8in
D 329mm; 13in 373mm; 14-5/8in 593mm; 23-3/8in 273mm; 10-3/4in 339mm; 13-3/8in 343mm; 13-1/2in 528mm; 20-3/4in 637mm; 25-1/8in 655mm; 25-3/4in
凈重 21.3kg; 47in 30.3kg; 66.8lbs 47.5kg; 104.7lbs 13.3kg; 29.3lbs 21.8kg; 48.1lbs 28.8kg; 63.5lbs 28kg; 61.7lbs 37.2kg; 82lbs 64.7kg; 142.7lbs

FLYABLE MODELS

Ideal for installations

  C112VA C115VA
Speaker type 2-way full-range speaker 2-way full-range speaker
Frequency range (-10dB) 60Hz-16kHz 55Hz-16kHz
Nominal coverage H 90 90
V 40 40
Components LF 12" cone 15" cone
HF Horn, 2" voice coil driver Horn, 2" voice coil driver
Power rating NOISE 175W (EIA) 250W (EIA)
PGM 350W 500W
PEAK 700W 1000W
Nominal impedance 8ohms 8ohms
SPL Sensitivity (1W; 1m on axis) 97dB SPL 99dB SPL
Continuous (Calculated) 119dB SPL 123dB SPL
Peak (Calculated) 125dB SPL 129dB SPL
I/O connectors Barrier strip terminal Barrier strip terminal
Shape 30 degrees trapezoidal 30 degrees trapezoidal
Finish Sprayed finish Sprayed finish
Flying and mounting hardware 4x 3/8" eyebolt, 4x W5/16" screw for 251 series bracket 4x 3/8" eyebolt
Dimensions W 416mm; 16-3/8in 485mm; 19-1/8in
H 620mm; 24-3/8in 707mm; 27-7/8in
D 329mm; 13in 373mm; 14-5/8in
Net weight 21.8kg; 48.1lbs 29.9kg; 65.9lbs

?
