音箱類型 |
2- 路低頻,密閉式箱體 |
2- 路低頻,密閉式箱體 |
全頻,低音反射式 |
|
頻率范圍 (-10dB) |
55Hz - 20kHz (Half-space:2π) |
56Hz - 20kHz (Half-space:2π) |
80Hz - 20kHz (Half-space:2π) |
|
覆蓋角 |
100° conical (Half-space:2π) |
110° conical (Half-space:2π) |
130° conical (Half-space:2π) |
|
部件 |
LF |
8" Cone |
6.5" Cone |
- |
|
HF |
1" Soft dome |
0.75" Soft dome |
- |
|
LF-HF |
- |
- |
4" full-range |
|
電功率 |
噪聲 |
90W |
75W |
30W |
|
PGM |
180W |
150W |
60W |
|
PEAK |
360W |
300W |
120W |
|
標稱阻抗 |
8Ω |
8Ω |
8Ω |
|
轉(zhuǎn)換器標簽 |
100V |
60W (170Ω), 30W (330Ω), 15W (670Ω) |
60W (170Ω), 30W (330Ω), 15W (670Ω) |
30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) |
|
70V |
60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) |
60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) |
30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) |
|
SPL |
靈敏度 (1W; 1m on axis) |
90dB SPL (Half-space:2π) |
86dB SPL (Half-space:2π) |
87dB SPL (Half-space:2π) |
|
大 SPL (計算所得) |
116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) |
111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) |
108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) |
|
接口 |
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) |
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) |
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) |
|
顏色 |

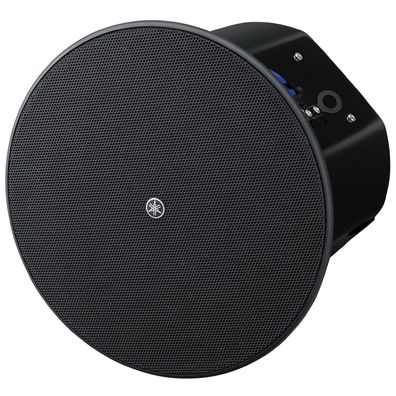

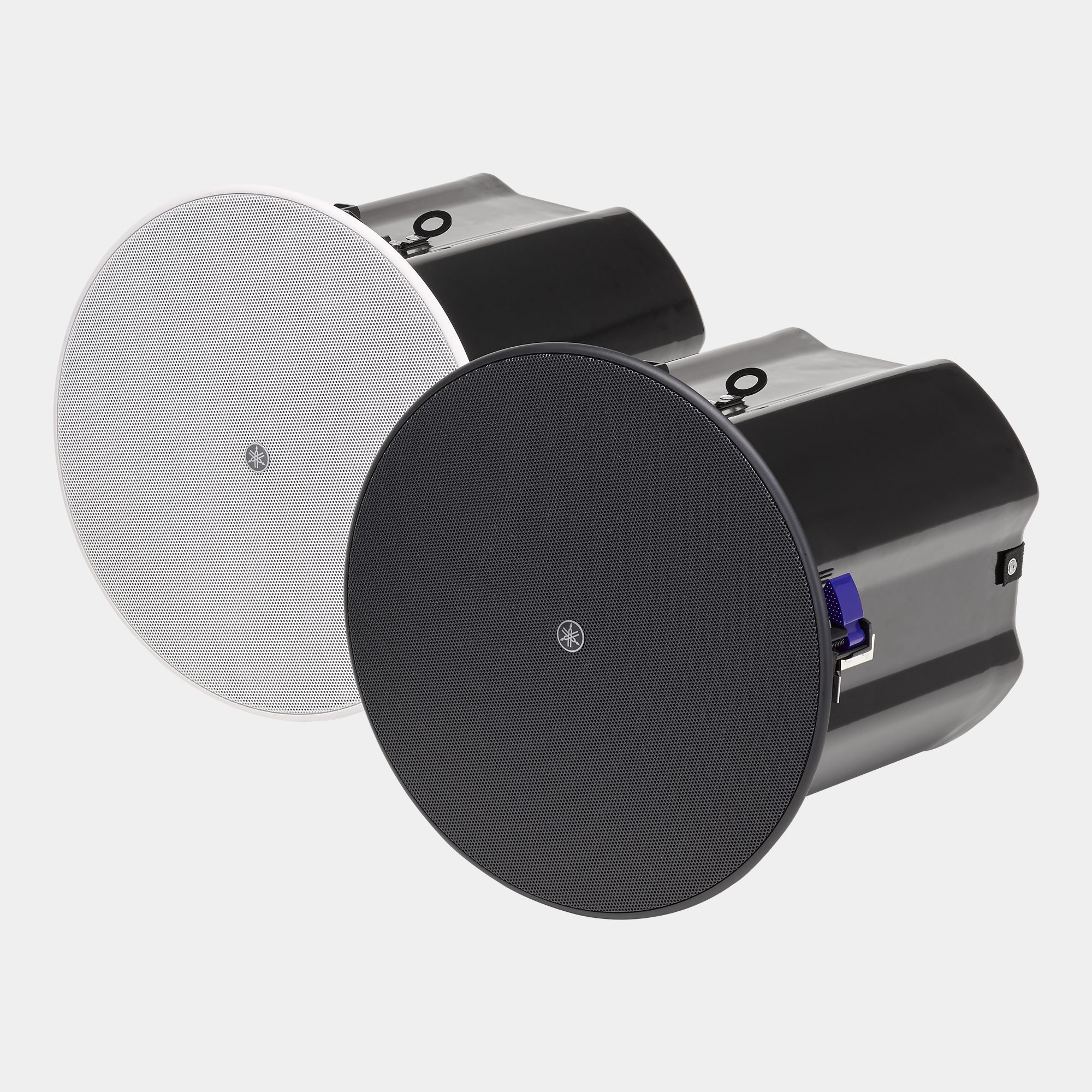

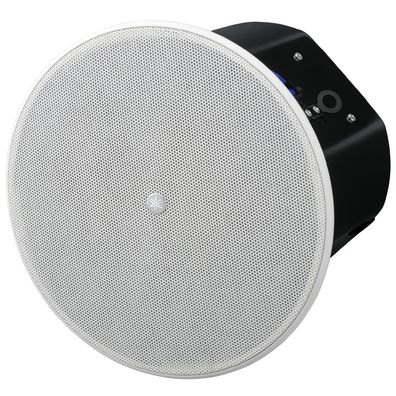

VXC8: Black / VXC8W: White |
VXC6: Black / VXC6W: White |
VXC4: Black / VXC4W: White |
|
外觀尺寸 |
Diameter |
325mm (12.8") |
286mm (11.3") |
225mm (8.9") |
|
D |
259mm (10.2") |
205mm (8.1") |
195mm (7.7") |
|
重量 |
6.6kg (14.6lbs) |
4.4kg (9.7lbs) |
2.6kg (5.7lbs) |
|
Cutout size |
Ø285 mm (Ø11 1/4") |
Ø247 mm (Ø9 3/4") |
Ø186 mm (Ø7-5/16") |
|
Required ceiling board thickness |
5 mm – 35 mm |
5 mm – 35 mm |
5 mm – 35 mm |
|
附件 |
O-ring, Tile Rail, Cutout Template |
O-ring, Tile Rail, Cutout Template |
O-ring, Tile Rail, Cutout Template |
|
Packaging |
Packaged in pairs |
Packaged in pairs |
Packaged in pairs |
|
Certificate |
UL1480, UL2043, NFPA70, CE, EAC, RoHS |
UL1480, UL2043, NFPA70, CE, EAC, RoHS |
UL1480, UL2043, NFPA70, CE, EAC, RoHS |
